Custom automation
Your Part.
Your Production Setup.
Bring JUNWEI your part drawing, joining requirements and production goals. Discuss a dedicated machine, application-specific fixtures or automation for the operation you need to improve.
- Equipment planning around your workpiece and process
- Fixtures, positioning and operator access to review
- Loading, joining and unloading requirements considered together
- Configuration and acceptance criteria agreed for your project
- Brand
- JUNWEI
- Product family
- Custom automation
- Project scope
- Dedicated machines, tooling and production operations
- Configuration
- Defined against your drawings and requirements
Share your material, workpiece dimensions and production requirements.
EQUIPMENT REFERENCES
Different Parts. Different Machine Layouts.
Examples from the JUNWEI catalogue to help define your equipment discussion.
Enclosed machine layout
Discuss the work envelope, component access and arrangement of the production operation.

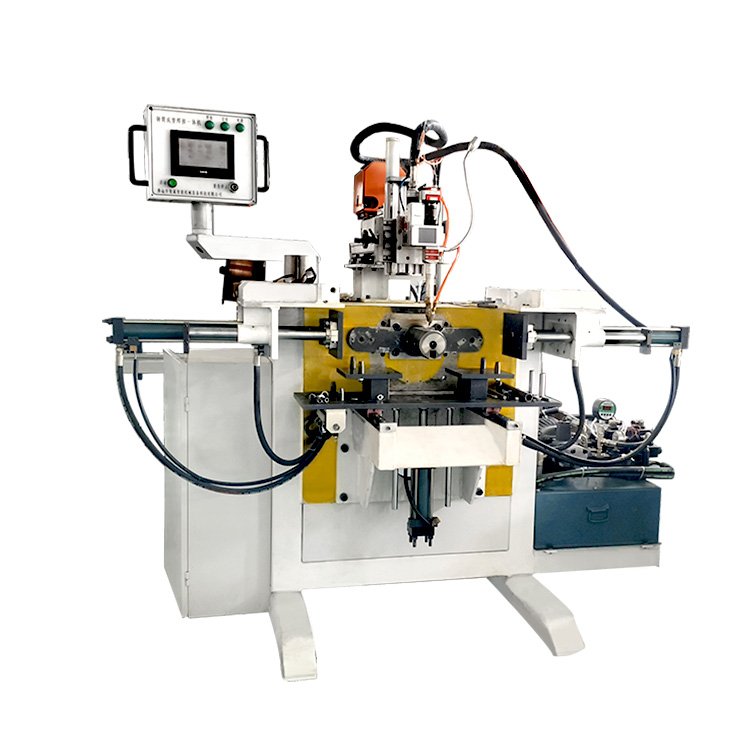

Workpiece positioning
Review support, tool movement and the joint path around your part.
Dedicated tooling
Explore fixture locations, loading clearance and contact points for the assembly.
These are different supplier equipment examples. Each project requires its own process and configuration review.
FROM REQUIREMENT TO PROJECT BRIEF
Define the Part, the Operation and the Result
- 01
Share the application
Provide drawings or samples, material details, joining locations and your current production method.
- 02
Plan the equipment
Discuss fixtures, loading, tool access, operation sequence and the automation scope you need.
- 03
Agree the requirements
Define output targets, finished-part criteria, inspection needs and site interfaces for the proposal.
PROJECT CONFIGURATION
Give the Equipment
a Clear Brief.
Use your drawings and production requirements to define the proposed system. Process suitability, working dimensions, output, utilities and delivery scope need project-specific confirmation.
| Workpiece | Drawings, material, dimensions, surfaces and product variants |
|---|---|
| Required operation | Joining positions, process needs and current production method |
| Handling & fixtures | Loading method, positioning, clamping and unloading needs |
| Production target | Required output, changeovers and intended automation level |
| Site interfaces | Available space, utilities and connections to other equipment |
| Acceptance criteria | Part quality, dimensional checks and inspection requirements |
INSIDE JUNWEI

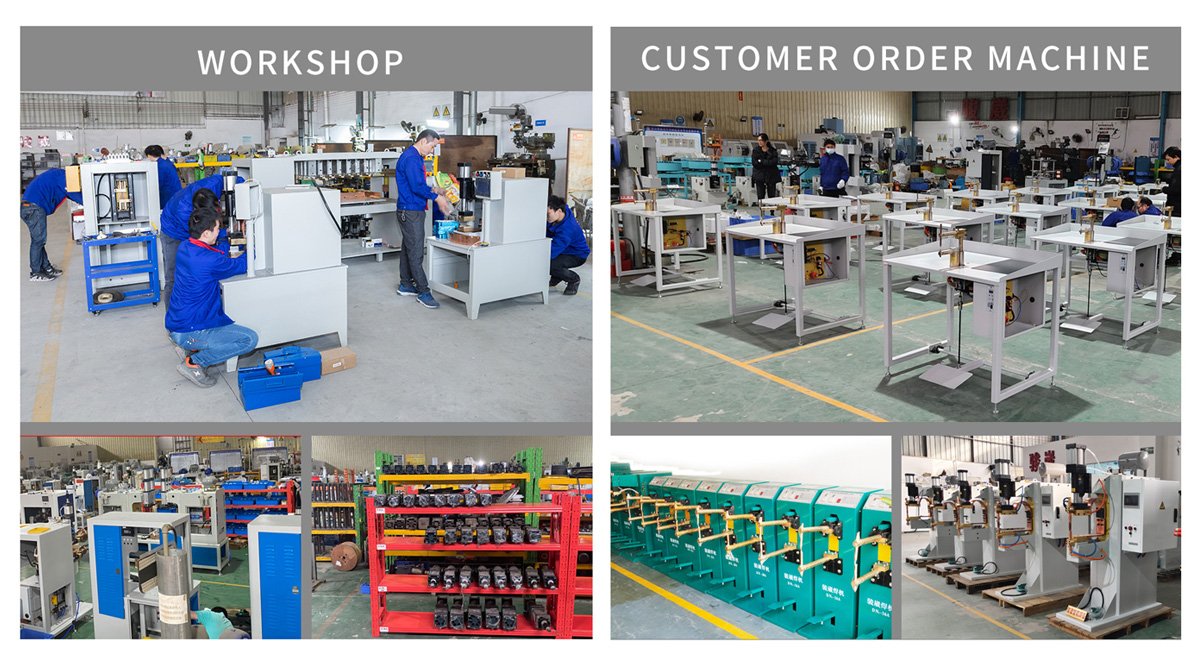

From Machine Design to Assembly
LET’S TALK ABOUT YOUR PART
Plan Your Custom Equipment Project.
Share your part drawings, current process and the production result you need.
