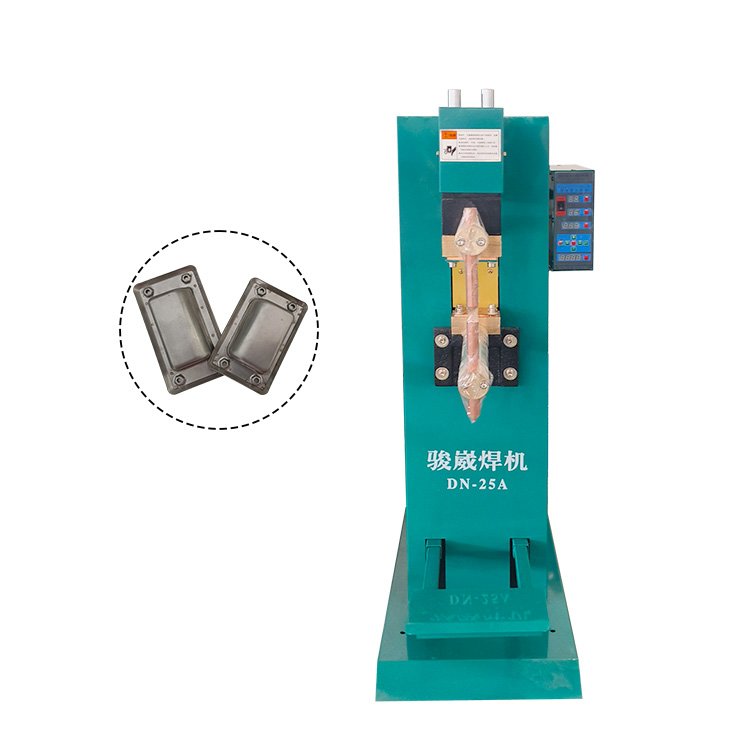

AC Spot Welding Machines
AC resistance welding for sheet-metal parts and wire assemblies.
Discuss this series →
Angled view
Spot welding machines
A welding setup built
around your workpiece.

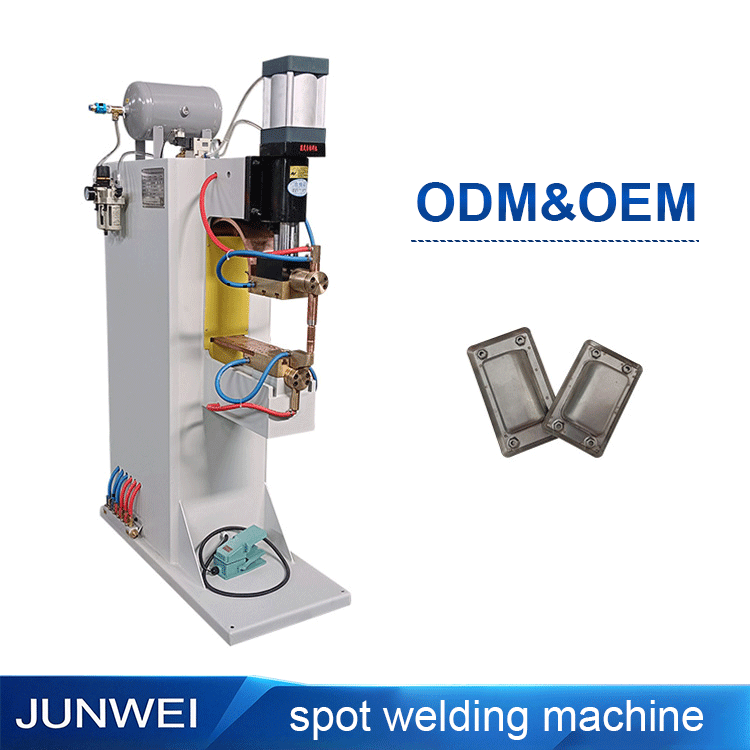

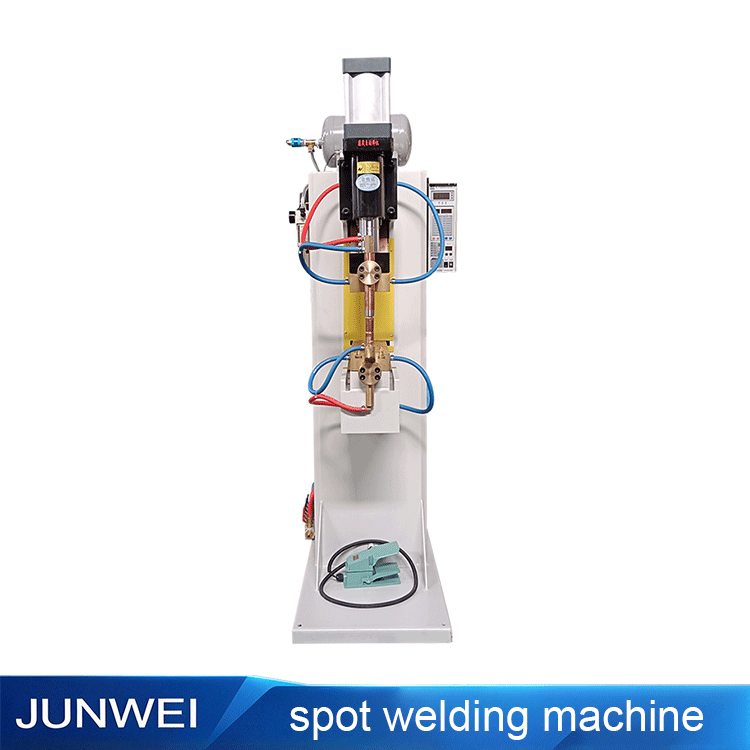

An upright pneumatic spot welder with a foot-operated control, copper welding arms and configurable welding joints. Discuss the electrode arrangement and machine setup for the parts you produce.
- Pneumatic cylinder for electrode movement
- Foot control for the welding cycle
- Welding joint customization for your application
- OEM & ODM options to discuss with JUNWEI
- Brand
- JUNWEI
- Product family
- Resistance spot welding
- Configuration
- Selected for your workpiece
- Supplier location
- Foshan, Guangdong, China
Share your material, workpiece dimensions and production requirements.
MACHINE VIDEO
Galvanized Sheet Spot Welding
Pneumatic Spot Welding Machine
Watch this short spot welding demonstration supplied by JUNWEI. Share your material, workpiece and weld positions to discuss a similar application.
Discuss this application ↗SPOT WELDING SERIES
Explore the Spot Welding Range
Four machine options for different joining requirements. Find a setup suited to your workpiece.

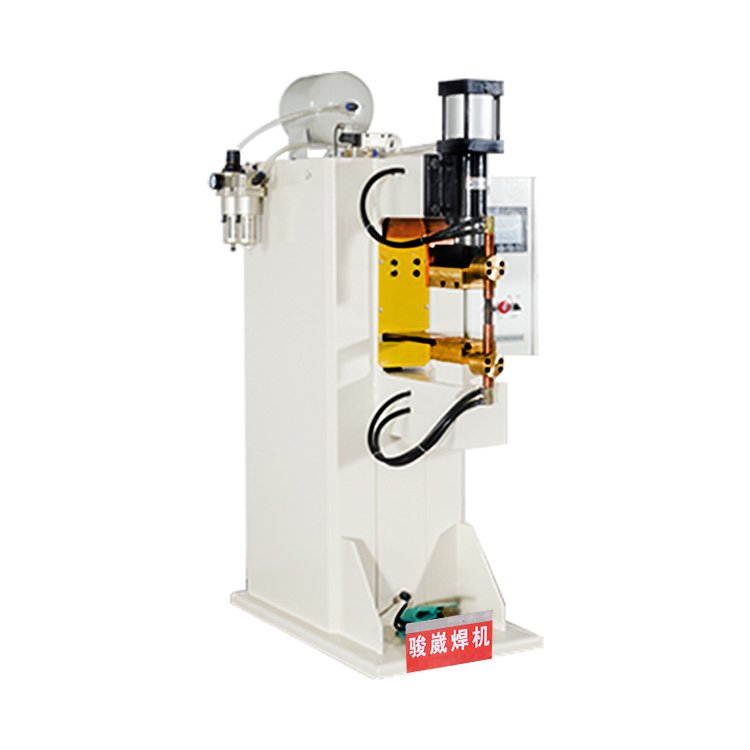

MFDC Spot Welding Machines
Medium-frequency DC welding, configured for your materials and weld layout.
Discuss this series →
Long Arm Spot Welding Machines
Discuss extended electrode reach for larger parts and deeper weld positions.
Discuss this series →

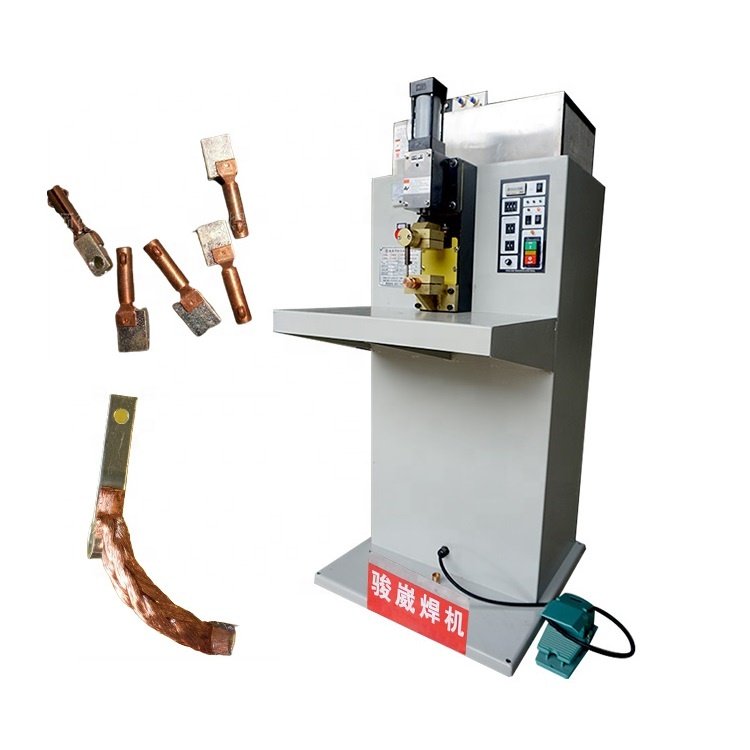

Capacitor Discharge Spot Welders
Explore stored-energy welding for terminals and other metal components.
Discuss this series →PRODUCT DETAILS
Built for Your Welding Application

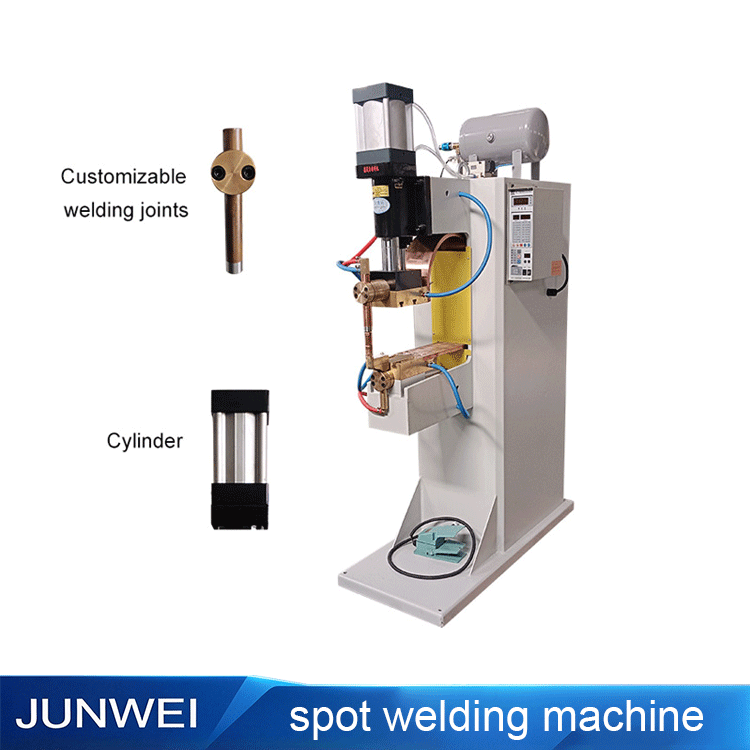

Customizable welding joints
Electrode access and joint geometry depend on the part. Share your drawings to discuss a welding joint and fixture arrangement.
Pneumatic welding head
The pictured machine uses a cylinder above the welding head. Discuss the working stroke, electrode force and part clearance with JUNWEI.
Operator controls within reach
A side-mounted controller and foot switch are shown on the supplied machine. The control setup is part of the configuration discussion.
Copper welding components
Copper arms and welding joints are visible in the product photographs. Electrode shape and cooling requirements are selected for the application.
SAMPLE DISPLAY
From Metal Parts to Wire Assemblies
Workpiece examples from the supplied JUNWEI product material.
Sample images illustrate applications. Machine selection and welding trials depend on your material and joint requirements.
MACHINE CONFIGURATION
Start with the Part.
Define the Machine.
The supplied machine photographs show the general arrangement. Electrical ratings, working dimensions and welding capacity need to be confirmed for the selected model and your application.

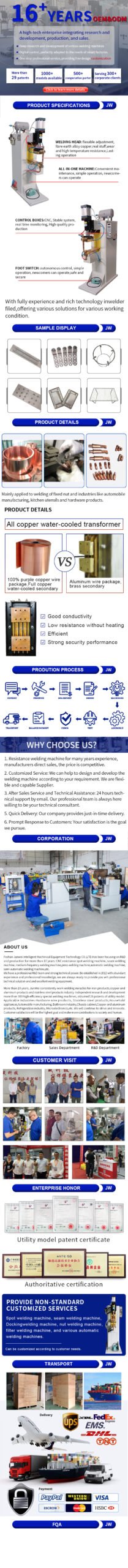

View original product sheet| Workpiece material | Material grade, coating and surface condition |
|---|---|
| Part dimensions | Thickness of each layer and overall part size |
| Welding layout | Joint positions, access and electrode clearance |
| Power supply | Available voltage, phase and frequency |
| Production needs | Target output and operator workflow |
| Customization | Fixtures, welding joints and automation needs |
INSIDE JUNWEI
From Machine Design to Assembly
LET’S TALK ABOUT YOUR WORKPIECE
Find a Spot Welding Setup for Your Production.
Start with a drawing, material details and the joints you need to weld.
