Start with the Ball.
Build Around the Joint.
Share your steel-ball dimensions, mating part and joint layout with JUNWEI. Discuss equipment, part support and the loading workflow around the assembly you need to produce.
- Steel-ball and metal-component joining requirements
- Ball location and workpiece support to discuss
- Tooling access and loading arrangements
- Automation scope matched to your production needs
- Brand
- JUNWEI
- Product family
- Steel ball welding
- Equipment selection
- Based on your ball and mating part
- Configuration
- Confirmed after application review
Share your material, workpiece dimensions and production requirements.
START WITH YOUR WORKPIECE
A Small Component.
A Specific Welding Task.

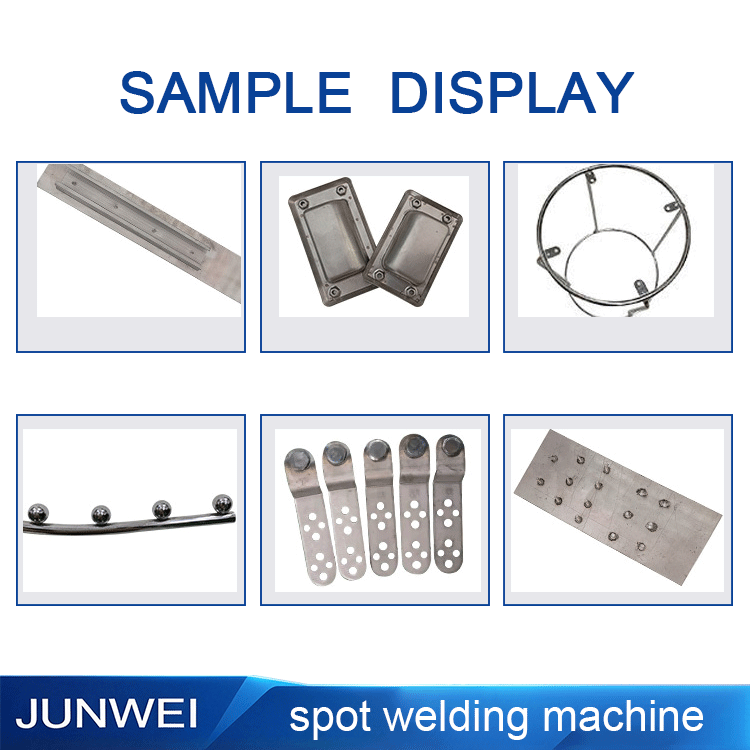

This steel-ball assembly appears in the supplied JUNWEI sample material. Use your own part drawing or sample to discuss the ball position, mating surface and welding access.
- Ball diameter, material and surface condition
- Mating-part shape and joint location
- Required spacing and assembly dimensions
The sample illustrates a workpiece. It does not establish the capability of the reference machine above.
View the original sample sheet ↗PLAN THE APPLICATION
Three Details That Shape the Setup
- 01
Locate the steel ball
Share the number of balls, their positions and the required relationship to the mating part.
- 02
Support the assembly
Discuss how to hold the workpiece and provide access to each joining position.
- 03
Define the workflow
Review loading, feeding, product changes and inspection needs for the proposed equipment.
MACHINE CONFIGURATION
Describe the Assembly.
Define the Requirements.
Prepare the ball and mating-part drawings before discussing equipment. Machine ratings, tooling dimensions, feeding compatibility and production capacity need to be confirmed for the selected setup.
| Steel ball | Diameter, material, surface finish and dimensional requirements |
|---|---|
| Mating part | Material, cross-section, overall shape and relevant drawings |
| Joint layout | Ball positions, spacing and welding access |
| Positioning | Part support, loading method and feeding requirements |
| Production | Target output, product variation and intended automation |
| Acceptance criteria | Weld quality, inspection and sample requirements |
INSIDE JUNWEI
Discuss the Tooling with Our Team
Bring the part requirements into the equipment and fixture discussion.
Engineering discussion
Share part drawings, joining positions and production requirements.
Machine assembly
Discuss the equipment configuration and the tooling needed for your assembly.
LET’S TALK ABOUT YOUR ASSEMBLY
Share Your Steel-Ball Welding Project.
Start with the ball, the mating part and the joints you need to weld.
